MIL-Pressure Hose
Pressure hoses serve as the basis for heated hoses and are also used in a variety of applications as cold hoses – without heating. They are characterized by their resistance to chemicals such as acids and alkalis in all concentrations, with the exception of molten alkali metals and fluorine compounds.

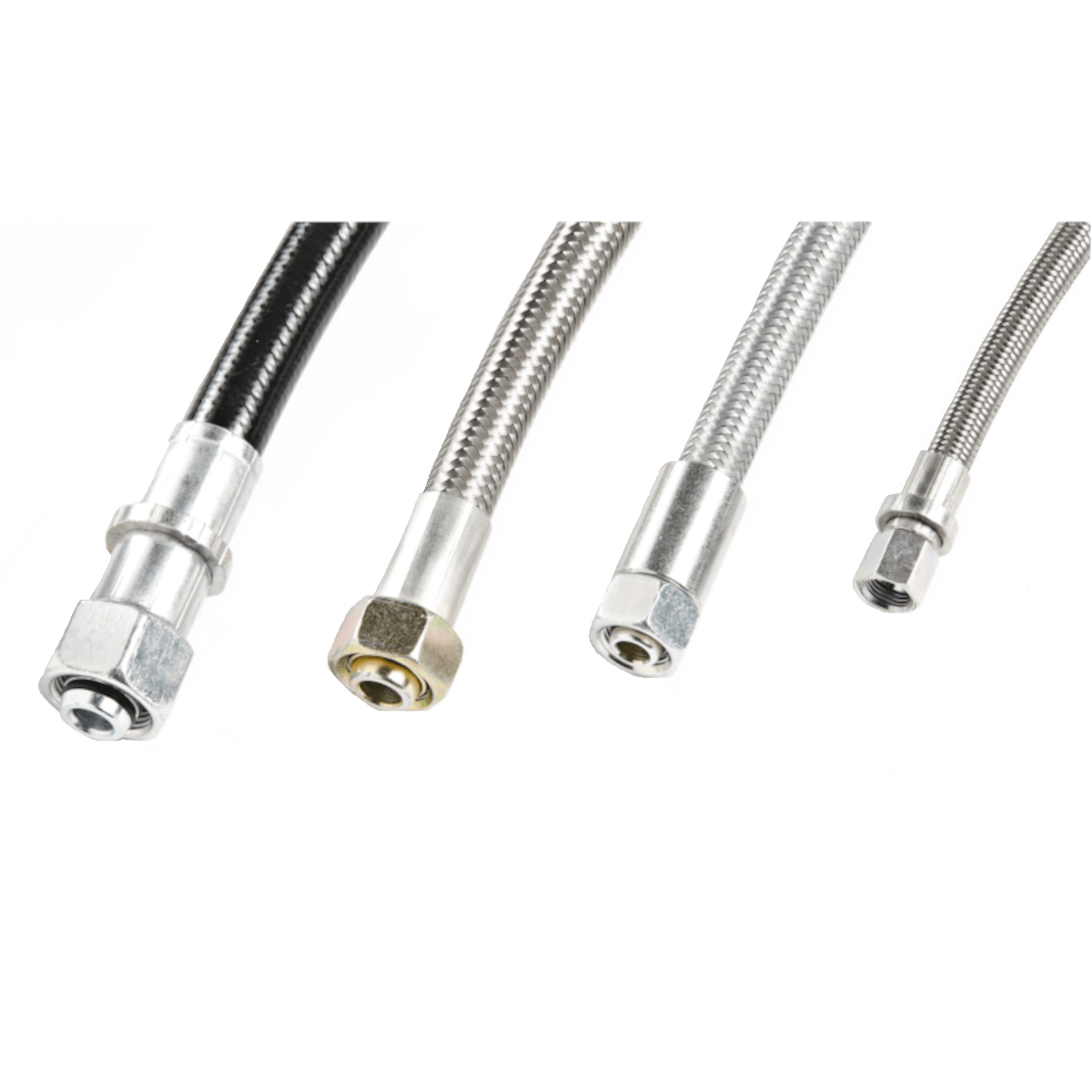

The hose always consists of an inner lining made of PTFE, PA or stainless steel, a steel jacket and connections on both sides. The uniform wall thickness of the inner lining plays a decisive role in the service life of the pressure hose. Depending on the pressure load, the core is braided with one or more layers of steel wire, wrapped or manufactured in combination. The connections are crimped precisely to the hose in order to guarantee the required pressure loads.
Technical data
T1
Smooth PTFE hose with a dished layer of steel wire (1.4301) max. operating temperature 250°C
| Nominal width DN (NW) | 4 | 6 | 8 | 10 | 12 | 16 | 20 | 25 |
| Max. operating pressure in bar | 275 | 240 | 200 | 175 | 150 | 135 | 100 | 80 |
| Burst pressure in bar | 1100 | 920 | 800 | 700 | 600 | 540 | 400 | 320 |
| min. Bending radius in mm | 50 | 75 | 100 | 120 | 135 | 160 | 200 | 250 |
T2
Smooth PTFE hose with a dished layer of steel wire (1.4301) max. operating temperature 250°C
| Nominal width DN (NW) | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 32 | 40 |
| Max. operating pressure in bar | 275 | 250 | 225 | 200 | 175 | 150 | 130 | 70 | 50 |
| Burst pressure in bar | 1100 | 1000 | 900 | 800 | 700 | 600 | 520 | 280 | 200 |
| min. Bending radius in mm | 75 | 100 | 120 | 135 | 160 | 200 | 250 | 500 | 850 |
T3
Smooth PTFE hose with two winding layers and one bobbin layer Steel wire (1.4301) max. operating temperature 250°C
| Nominal width DN (NW) | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 32 |
| Max. operating pressure in bar | 500 | 475 | 450 | 400 | 400 | 300 | 275 | 250 |
| Burst pressure in bar | 2000 | 1900 | 1800 | 1600 | 1600 | 1200 | 1000 | 1000 |
| min. Bending radius in mm | 75 | 100 | 120 | 135 | 160 | 200 | 240 | 280 |
PTFE corrugated hose
PTFE corrugated hose with one layer of stainless steel wire, spirally corrugated, suitable for very small bending radii (working temperature range -54°C to +204°C, depending on medium and operating pressure)
| Nominal width DN (NW) | 10 | 13 | 16 | 20 | 25 | 32 | 40 | 50 |
| Max. operating pressure in bar | 103 | 103 | 86 | 86 | 77 | 62 | 51 | 34 |
| Burst pressure in bar | 413 | 413 | 345 | 345 | 310 | 248 | 206 | 138 |
| min. Bending radius in mm | 25 | 37 | 50 | 62 | 75 | 82 | 200 | 250 |
PFA corrugated hose
PFA corrugated hose with a dished layer of stainless steel wire, parallel corrugated and very flexible (working temperature range -54°C to +200°C, depending on medium and operating pressure)
| Nominal width DN (NW) | 8 | 10 | 13 | 16 | 20 |
| Max. operating pressure in bar | 90 | 88 | 88 | 88 | 53 |
| Burst pressure in bar | 360 | 350 | 350 | 350 | 210 |
| min. Bending radius in mm | 25 | 37 | 40 | 50 | 62 |
PA high pressure hose
Two wire spiral inserts made of high-tensile steel wire and a braid made of steel wire, high kink resistance and high flexibility (working temperature range -40°C to +100°C)
| Nominal width DN (NW) | 6 | 8 | 10 | 12 | 16 | 19 | 25 | 31 |
| Max. operating pressure in bar | 450 | 400 | 375 | 350 | 330 | 300 | 275 | 275 |
| Burst pressure in bar | 1800 | 1600 | 1500 | 1400 | 1320 | 1200 | 1100 | 1100 |
| min. Bending radius in mm | 70 | 100 | 120 | 165 | 200 | 240 | 280 | 400 |
Other material hoses up to DN 80 are available on request
