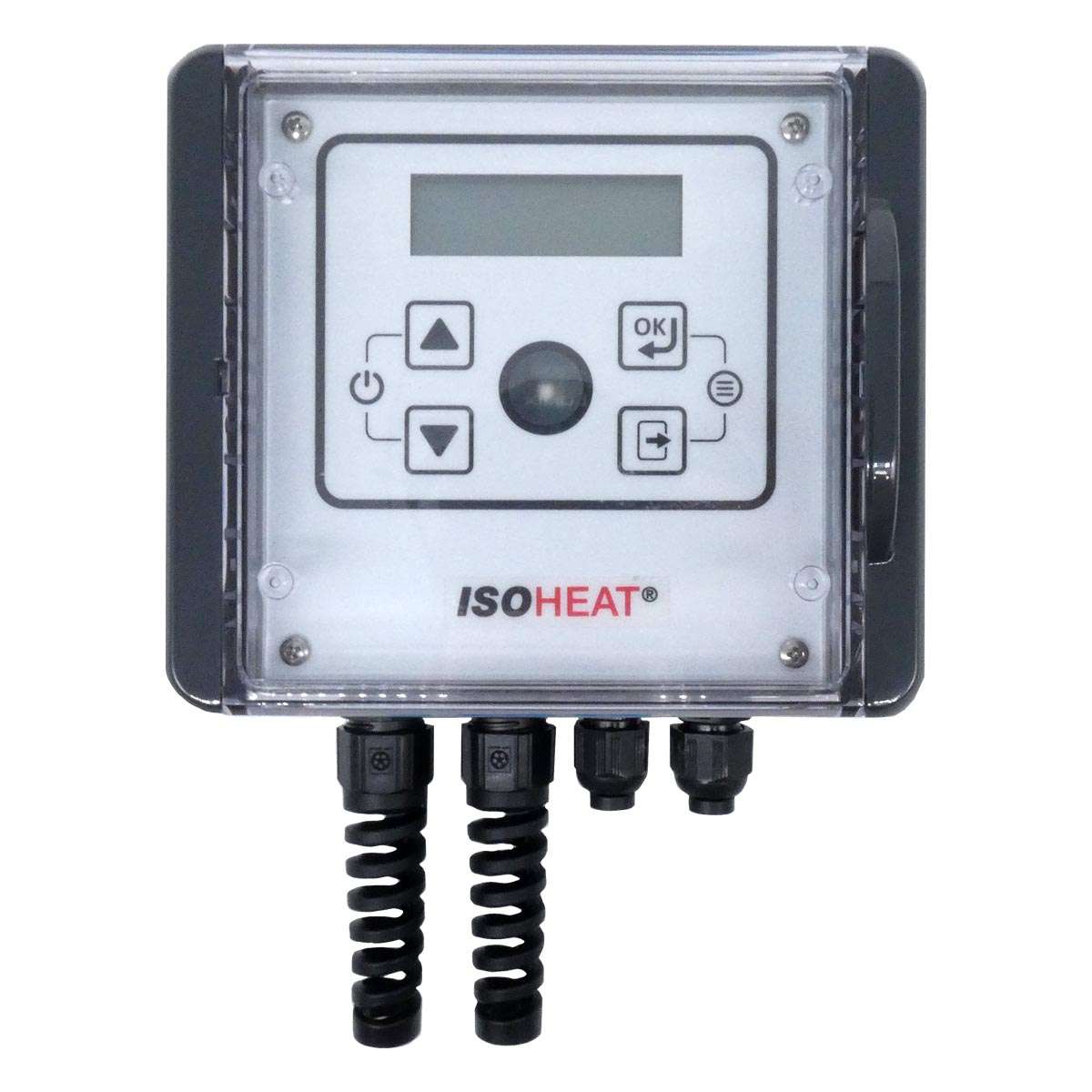

MIL-EC510
MIL-EC510 with terminal connection
- Sturdy polycarbonate housing with transparent lid
- LCD graphic display
- 3-color LED to display the operating status
- FAT controller (Fast Adaptive Tuning)
- Operation via keypad incl. menu control
- Various sensor inputs possible
- Freely adjustable temperature range up to 999°C
- Direct connection of supply line and heating via terminals
Technical data
| Nominal voltage | 90 – 230 V AC |
| Switching capacity | Up to max. 3600 W |
| Switching current | Up to max. 16 A |
| Sensor input | Pt100, Pt1000, Nickel 120 (each 2, 3 or 4-wire connection), NTC 10k, NTC 100k (each 2, 3 or 4-wire connection), thermocouples type K, J, E or N; all inputs potential-free with sensor break protection |
| Temperature range | 0 – 999°C |
| Protection class | I |
| Protection type | IP 65 |
| Screw connections | 2 x M12 (sensor & alarm), 2 x M16 (mains + heating) |
| Dimensions | 151 x 125 x 60 x mm (W x H x D) |
Order data
| Type | Connection | Item no. |
| MIL-EC510 | Terminal connection | 61000510 |
