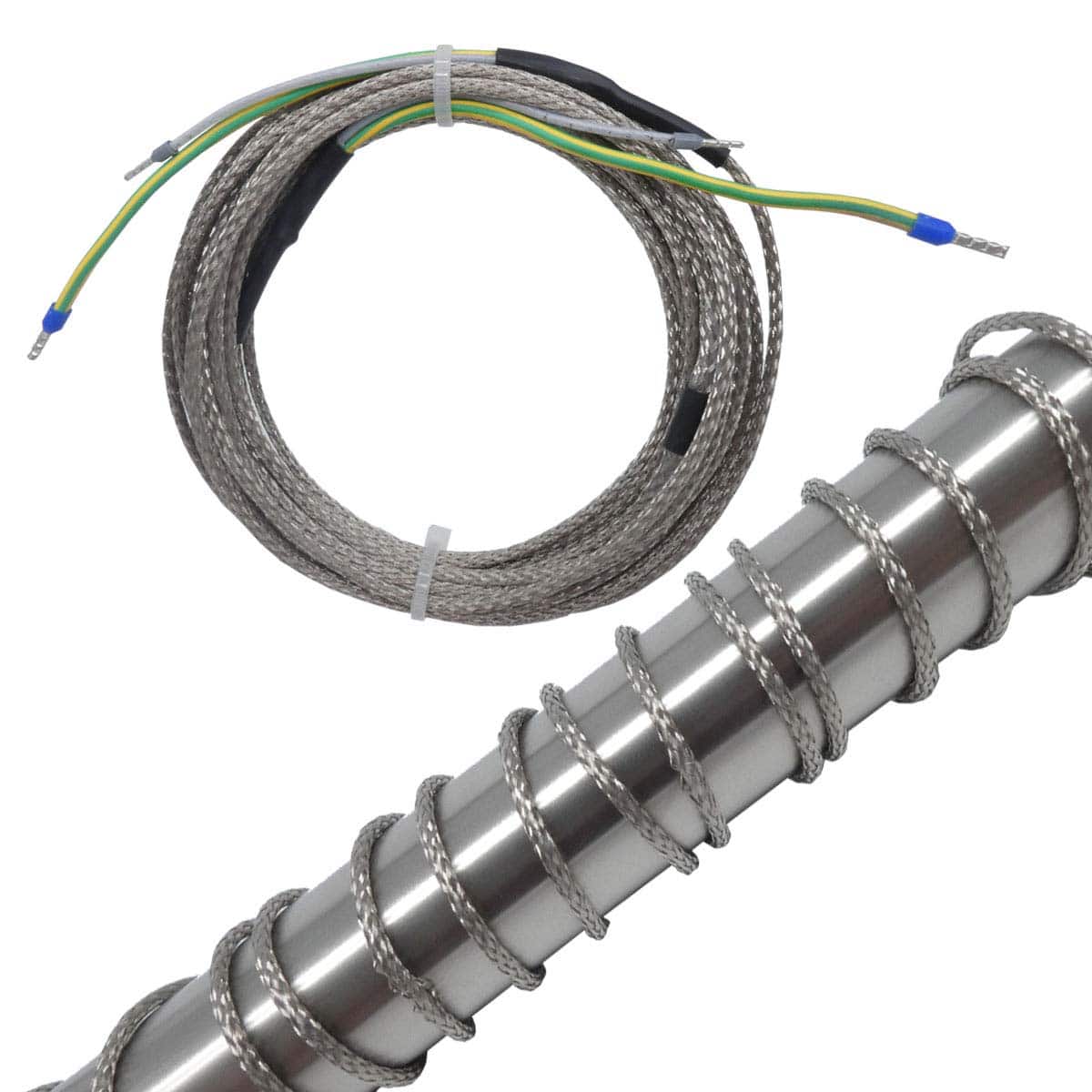

MIL-HC-PS
PTFE-insulated heating cable up to 260°C
- Splash-proof
- Easy to install
- Very flexible
- Very long lengths possible
- Inexpensive
- With protective conductor braiding
Application examples:
Pump and valve heating systems, pipe trace heating systems, temperature control of
machine parts and equipment, tank heaters, heaters for transport containers, etc.
Technical data
| Nominal voltage | Up to 500 V AC |
| Rated power | approx. 20 W/m |
| Dimensions | Ø 3,0 – 5,0 mm |
| Minimum bending radius | > 10 mm |
| Laying distance | > 5 mm |
| Protection class | I |
| Protection type | IP 64 |
| Max. heatsealing band temperature | 260°C |
| Cold ends | 2 x 1,5 m standard (other lengths possible) |
Order data
| Length
m |
Power
W |
Item no. |
| 1,8 | 48 | 20000018 |
| 3,0 | 60 | 20000030 |
| 5,1 | 104 | 20000051 |
| 7,2 | 142 | 20000072 |
| 11,0 | 220 | 20000110 |
| 17,0 | 340 | 20000170 |
| 23,0 | 485 | 20000230 |
Other lengths, nominal voltages and power ratings available on request
