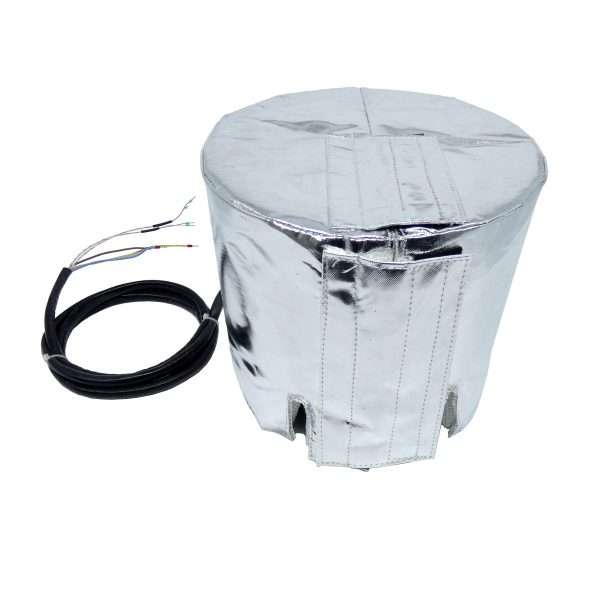

MIL-HJ-250
Heating jacket up to 250°C
Our hand-made heating jackets are customizable and can be produced for a wide range of geometric shapes
- Slitted heating jackets for easier handling
- No additional thermal insulation necessary
- Wide variety of geometric shapes possible
- Cutouts can be considered
- Permanently integrated temperature sensor
Technical data
| Nominal voltage | Up to 500 V AC |
| Rated power | Process-dependent |
| Outer jacket | Glass fiber, with PTFE, PUR, silicone or aluminium coating |
| Inner jacket | Glass fiber, but also possible with PTFE or silicone coating |
| Isolation | Glass needle felt, thickness depending on installation conditions |
| Heatsealing band | PTFE-insulated resistance element |
| Mounting type | Hooks and loop tape, eyelets or Velcro |
| Protection class | I |
| Protection type | IP 64 |
| Temperature sensor (permanently installed) | Pt100 or thermocouple – according to customer specification |
| Max. heatsealing band temperature | 250°C |
| NMains connection cable | customized |
