MIL-HPG-250S

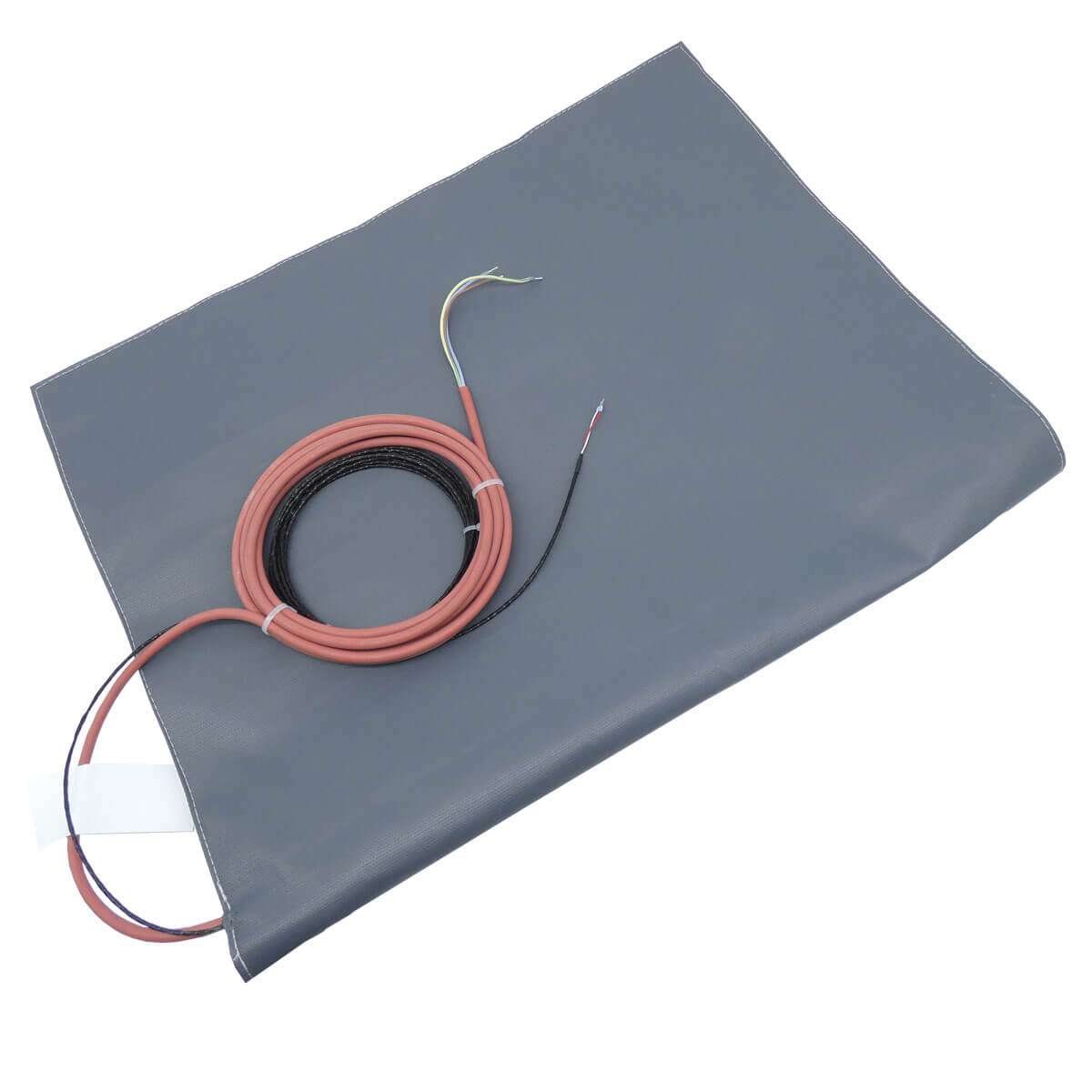

Heating mat with PTFE-insulated heating conductor up to 250°C
- Simple assembly and disassembly
- Wide variety of geometric shapes possible
- Cutouts can be considered
- Permanently integrated temperature sensor
Technical data
| Nominal voltage | Up to 500 V AC |
| Rated power | Process-dependent |
| Outer sheath | Glass fiber with PTFE, PUR silicone or aluminium coating |
| Inner jacket | Glass fiber |
| Heatsealing band | PTFE-insulated resistance element |
| Mounting type | Hooks and loop tape, eyelets or Velcro |
| Protection class | I |
| Protection type | IP 64 |
| Temperature sensor (permanently installed) | Pt100 or thermocouple – according to customer specification |
| Max. temperature | 250°C |
| Mains connection cable (silicone-insulated) | customised |
