MIL-MS

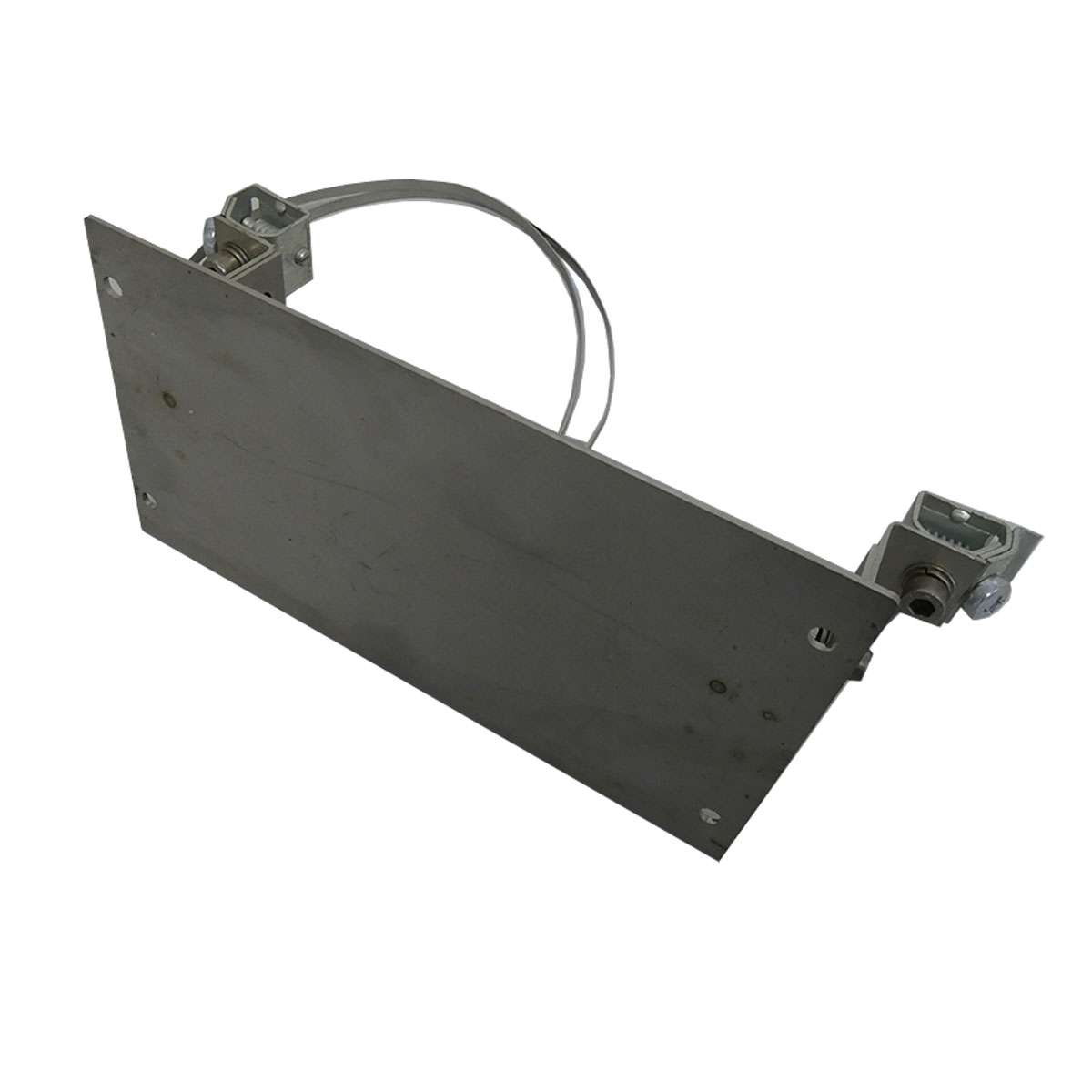

Mounting bracket
Technical data
Mounting bracket for pipe mounting consisting of:
- 1 piece mounting plate made of V2A
- 2 angles made of V2A
- 4 fixing screws with nuts and washers for fixing the terminal box
- 2 pieces 0.8 m threaded tensioning strap
- 2 threaded clamping heads
- 2 deflection brackets with fixing screw
- 2 screws M 8×8 with spring washer
- 4 M6 nuts with washer and spring washer
Order data
| Type | Suitable for terminal box / or controller | Item no. |
| MIL-MS1 | MIL-PCB 1 | 72000010 |
| MIL-MS2 | MIL-PCB 2 | 72000011 |
| MIL-MS3 | MIL-CST or MIL-EC | 72000012 |
| MIL-MS4 | MIL-CSTL | 72000013 |
